Metal CK6140 Turning Center Torno CNC Lathe Machine High Precision

Product Categories
Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Metal CK6140 Turning Center Torno CNC Lathe Machine High Precision

  • 1
  • 2
  • 3

Brand Name : Zaozhuang NO.1

Model Number : CK6140

Certification : CE,ISO,EAC

Place of Origin : Shandong, China

MOQ : 1

Price : 8100USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Maximum turning diameter of bed : 400mm

Maximum workpiece length : 750/1000/1500/2000mm

Spindle hole : Φ52

Spindle bore taper : MT6

The main moto power : 5.5kw

Tail stock center hole : MT4

Contact Now

CK6140 Turning Center Torno Cnc Metal cnc Lathe Machine for Metal Made in China
Product Description
The CK6140 CNC lathe ensures extremely high - precision processing. It can accurately machine various rotary surfaces such as outer circles, inner holes, conical surfaces and threads, meeting the strict requirements of part machining accuracy. Equipped with an advanced CNC system, this lathe enables automated processing. By programming, it can continuously and stably complete a series of machining operations, which significantly improves production efficiency and reduces labor intensity.
Standard Configuration:
1. GSK 980 TDC
2. Spindle Unit A2-8/through hole 52
3. 200mm manual Chuck
4. The main shaft gear box has 2 gears
5. 4-station tool holder
6. Bed guide width 400mm
Product Specification

Main technical data

CK6140-750mm

CK6140-1000mm

CK6140-1500mm

The Max. Body Diameter

Φ400

The Max. Carriage Diameter

Φ200

The Max. Cutting Diameter

Φ400

The Max. Length Diameter

750mm

1000mm

1500mm

X/Z axis travel

280/750mm

280/1000mm

280/1500mm

The X/Z axis minimum displacement unit

0.001

Spindle hole

Φ52

Taper of spindle bore

1:20

Spindle series

continuously

The limit speed of spindle

150-2000

Work piece clamping way

hydraulic chuck

The main moto power

5.5kw

Frequency converter

11

X/Z axis

6/6

Fast moving speed of X/Z axis

5/8

Turret type

4 Electric tool rest at station

Bar size

20*20

Repetitive positioning accuracy

≤0.004

The tail seat type

HAVE

Diameter of tail stock sleeve

Φ60

Stroke of tail stock sleeve

100

Tail stock center hole

MT4

Weight of machine

1560

Machine dimensions

2200×1160×1620

3230*1280*1640

4200×1160×1620

Power demand

10kw/20A

Weight

1800

2500

3500
Product Display

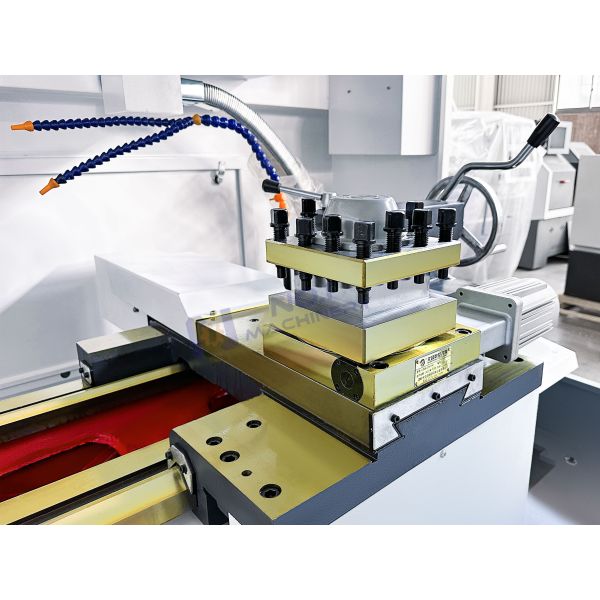

Metal CK6140 Turning Center Torno CNC Lathe Machine High Precision

Metal CK6140 Turning Center Torno CNC Lathe Machine High Precision

Metal CK6140 Turning Center Torno CNC Lathe Machine High Precision
